RAFF + GRUND - YOUR SPECIALIST FOR INDIVIDUAL PLANT CONSTRUCTION
Raff + Grund is an experienced manufacturer of skids, systems and vessels for various applications. One focus is on the pharmaceutical and biotechnology industries. Our company specializes in process engineering design, construction, manufacture and qualification and has many years of experience and expertise in this field.
Raff + Grund's product portfolio includes a wide range of solutions tailored to customers' specific requirements. Skids, vessels and customized solutions for complex process plants are manufactured.
An experienced team of engineers, technicians and skilled workers ensures that all products meet the highest quality requirements and comply with all relevant international standards. The installation, start-up and training of the systems are carried out at the customer's premises worldwide.

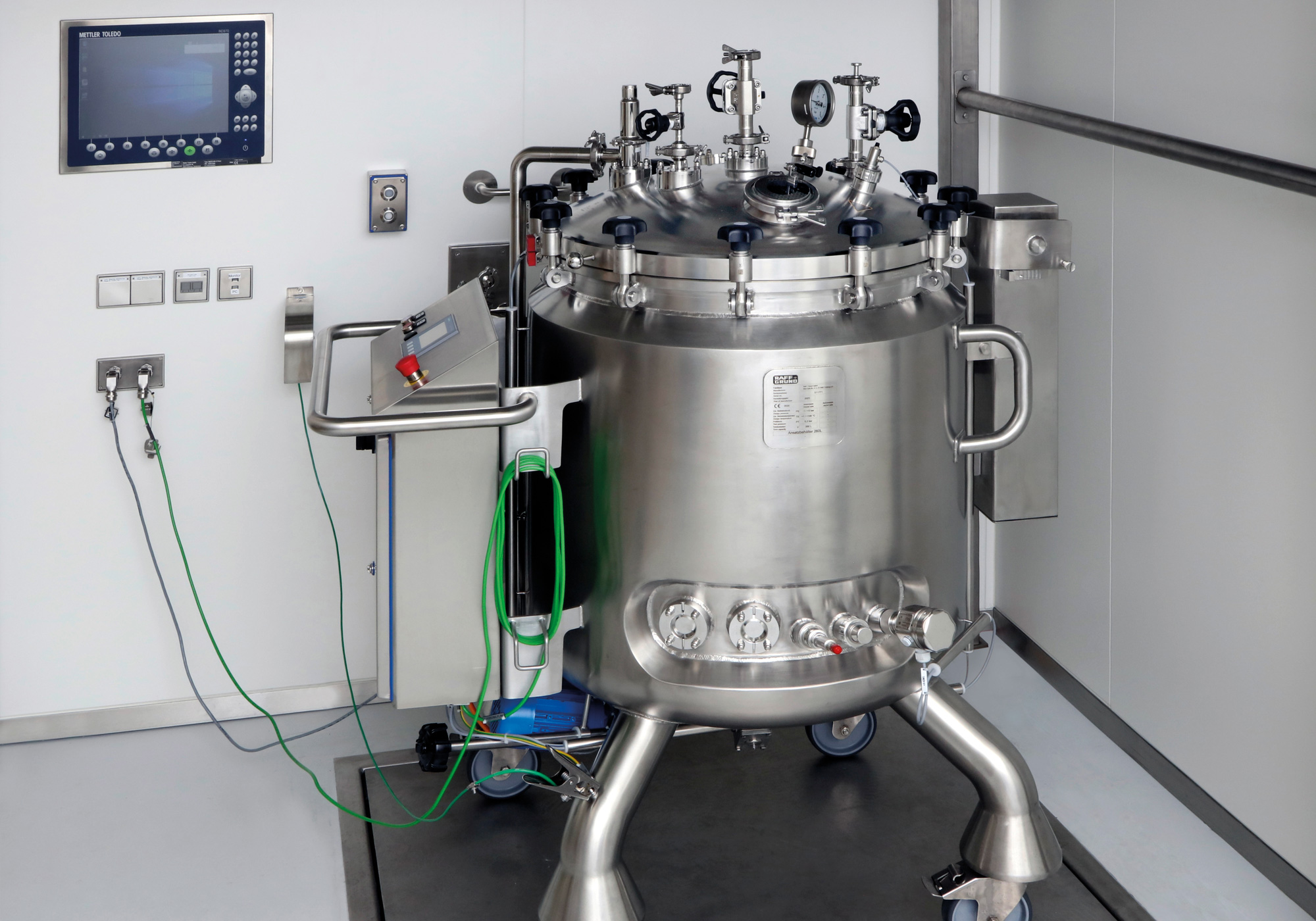

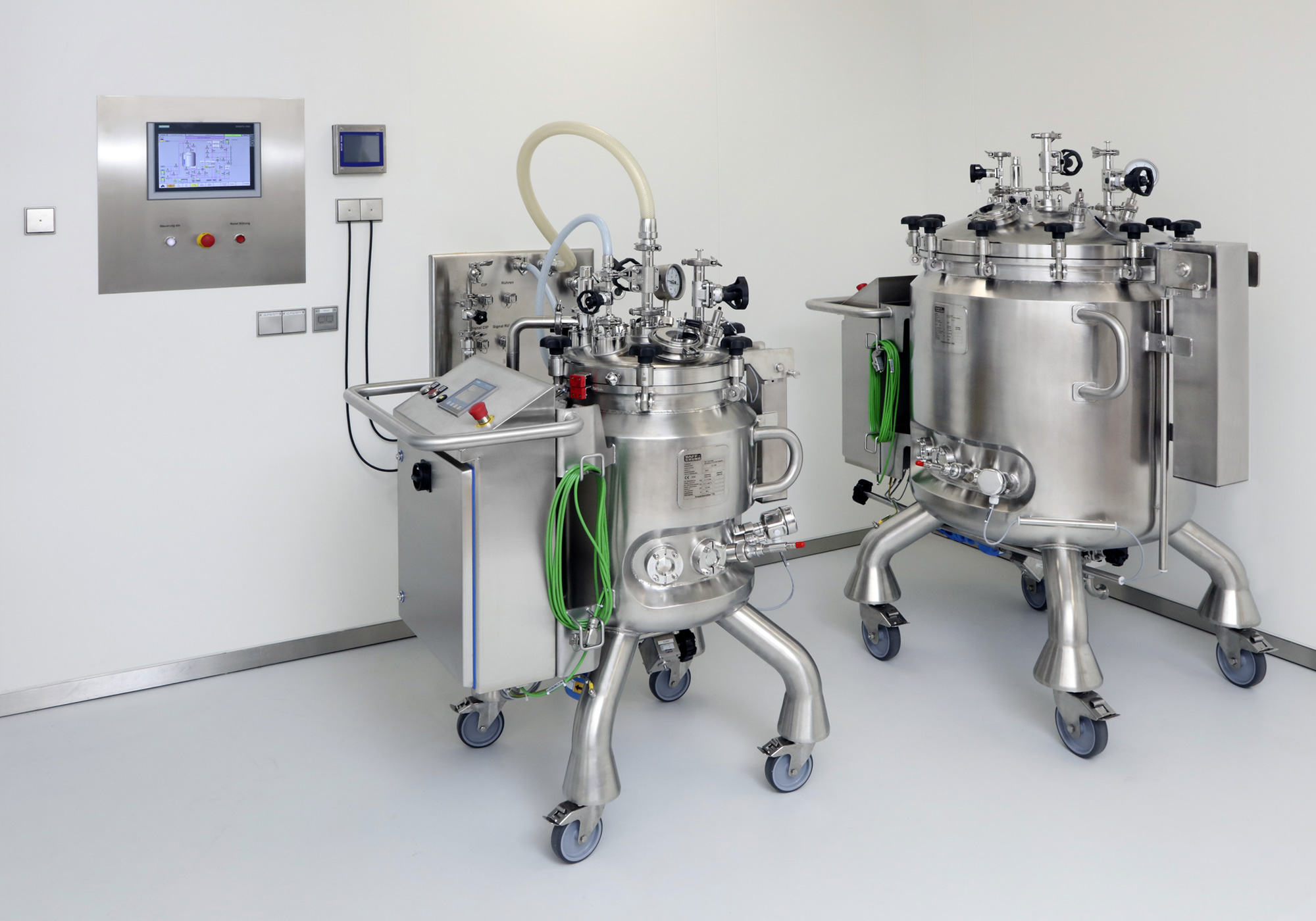

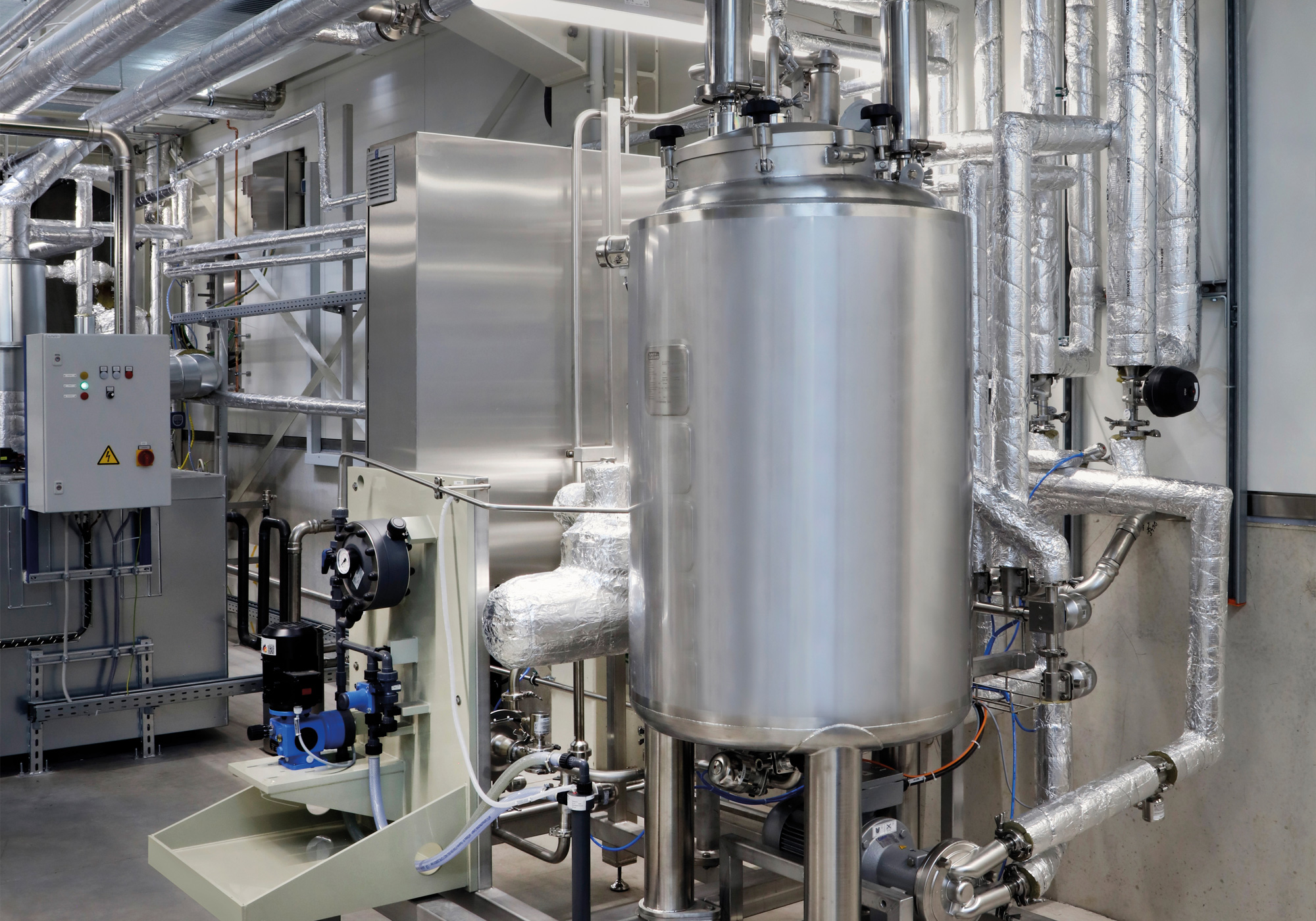

CIP SYSTEM AND MOBILE VESSELS FOR STERILE BATCH PREPARATION
Design and construction of a system for sterile batch production consisting of a CIP unit with central control, the option of cleaning and sterilizing various mobile vessels and mobile batch vessels.
The mobile vessels are recognized by the automation at the cleaning and sterilization station or at several stirring stations via their own IP address. They are controlled via an HMI in the clean room and the touch panels on the vessels or via the controller on the CIP system in the technical room. Including design, construction, installation, start-up and qualification (DQ, IQ, OQ) of the unit.
Download product description

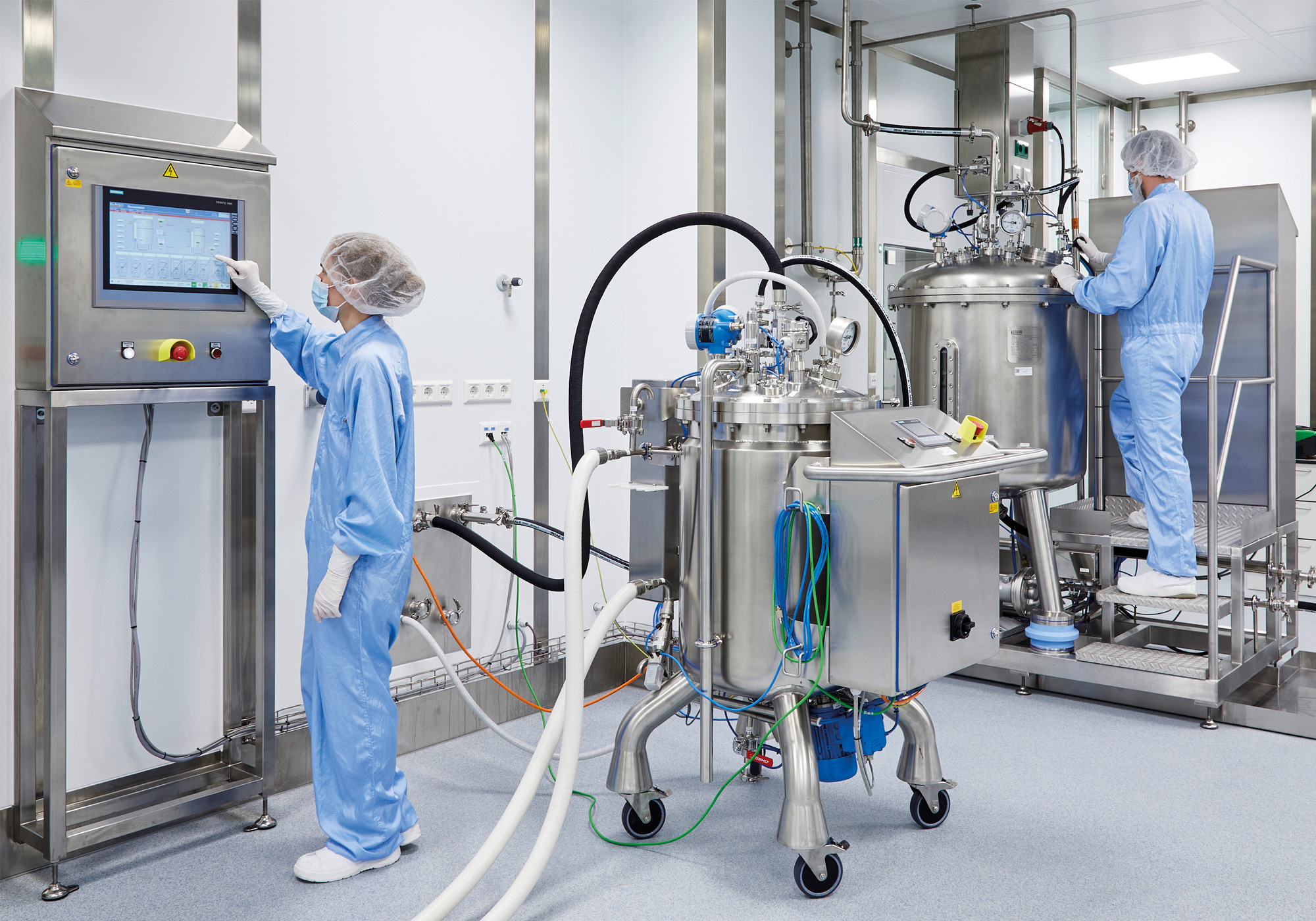

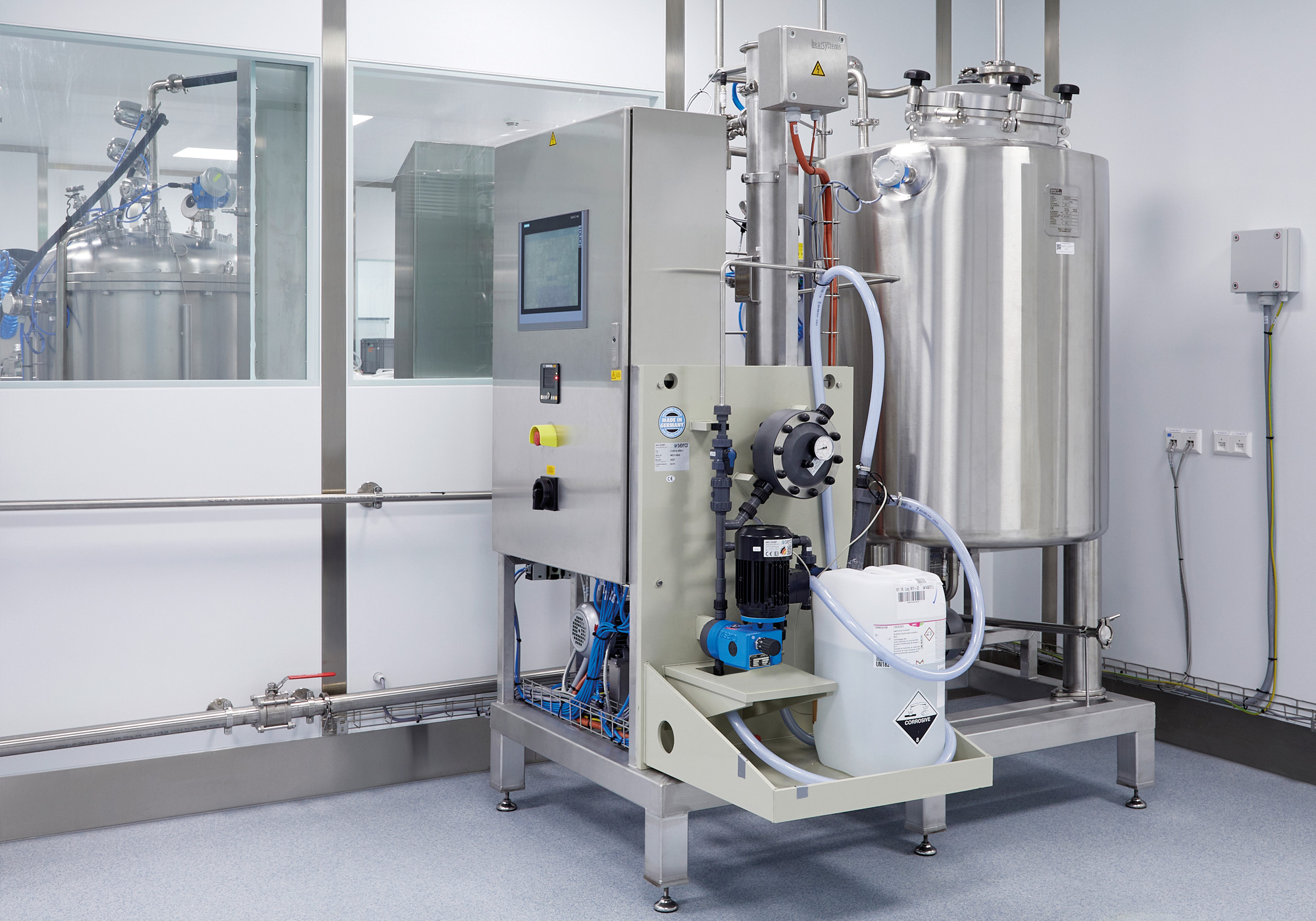

PLANT FOR mRNA API PRODUCTION
Design and manufacture of a pharmaceutical line for mRNA active ingredient production. The line consists of a stationary vessel on a skid, several mobile vessels and a CIP unit with central control.
The mobile vessels are recognized by the automation system at the cleaning station or at several stirring stations via their own IP address. They are controlled via an HMI in the cleanroom or via the HMI of the controller on the CIP system. Including design, construction, installation, start-up and qualification (DQ, IQ, OQ) of the system.

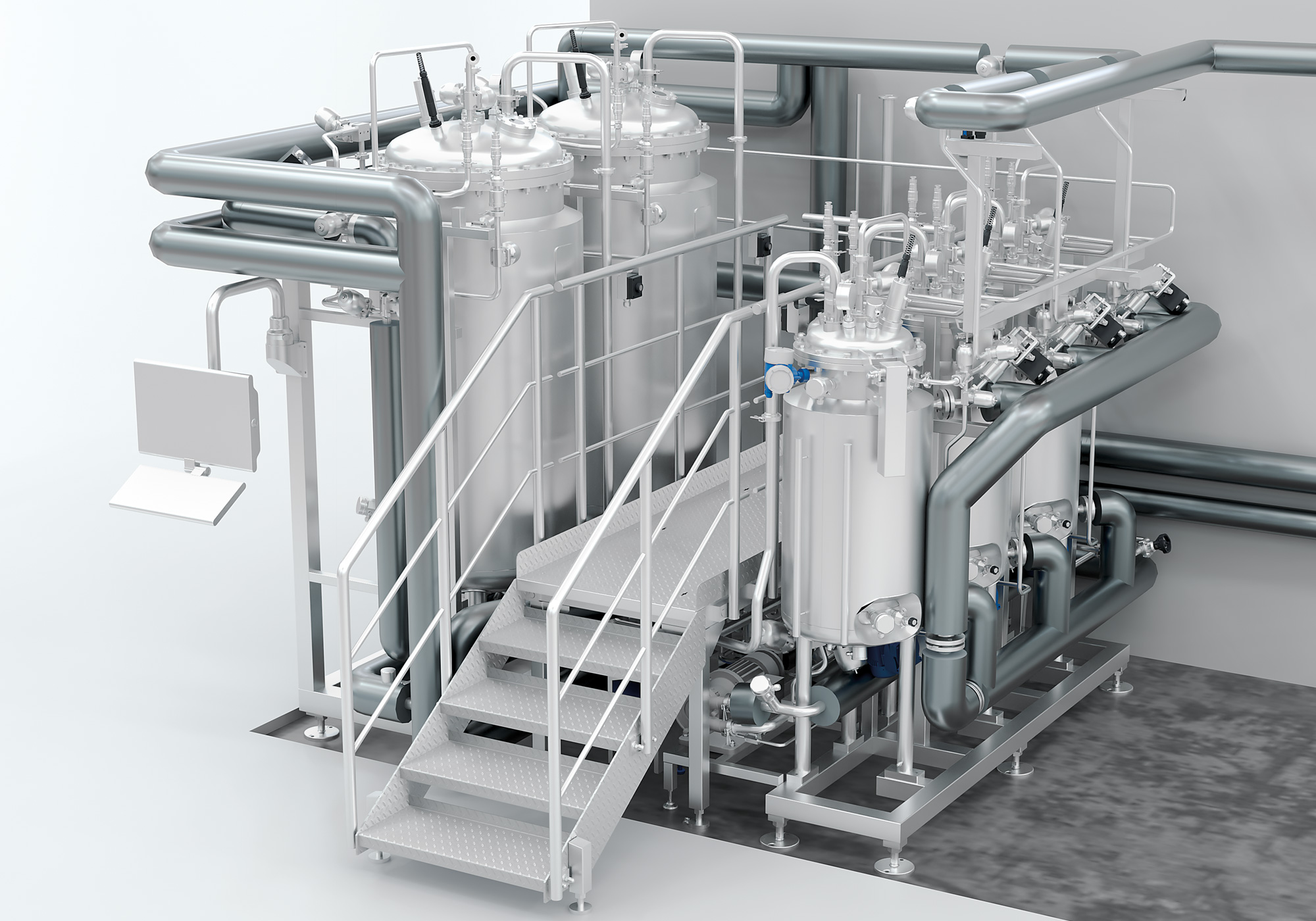

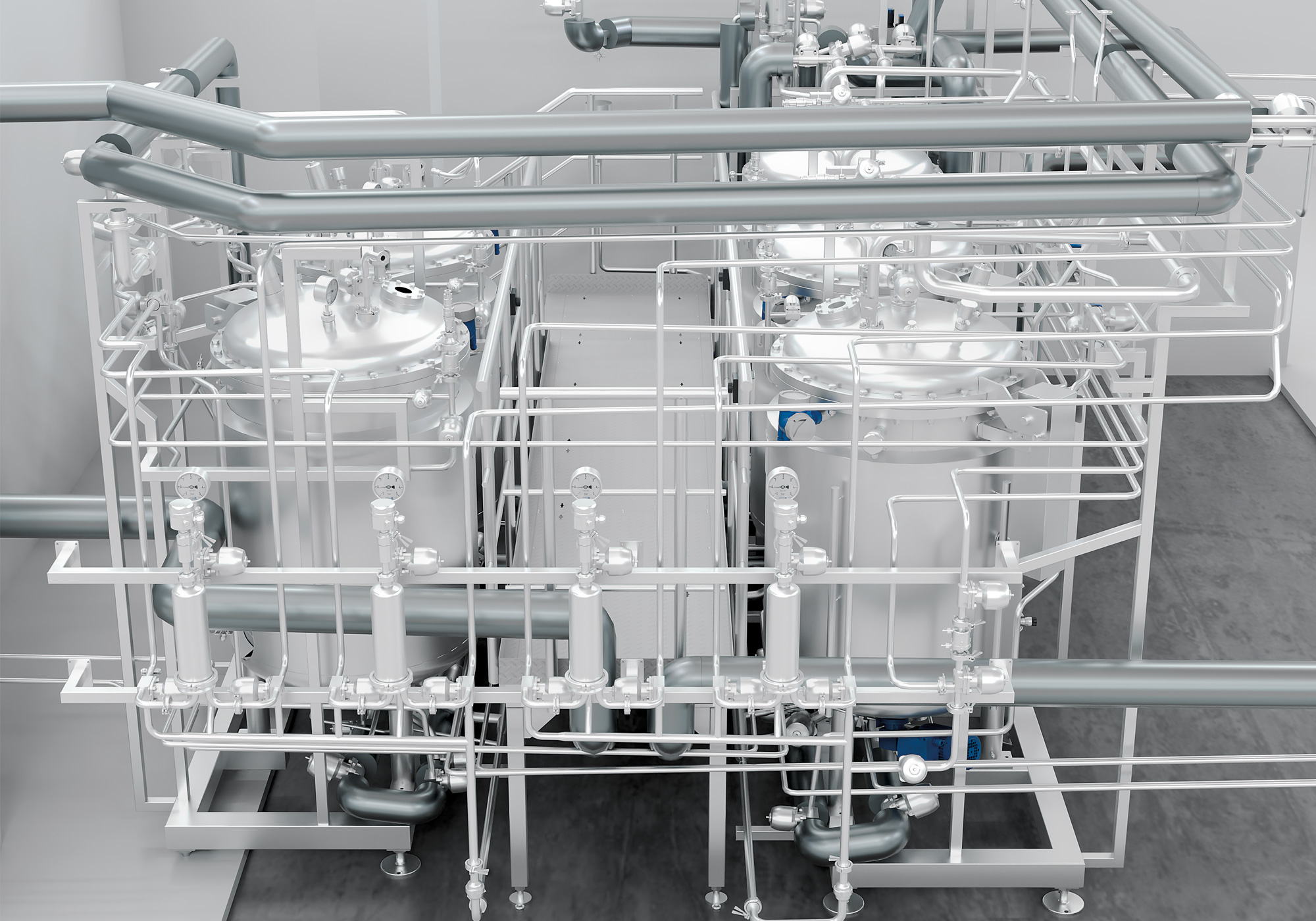

BIOTECH PLANTS

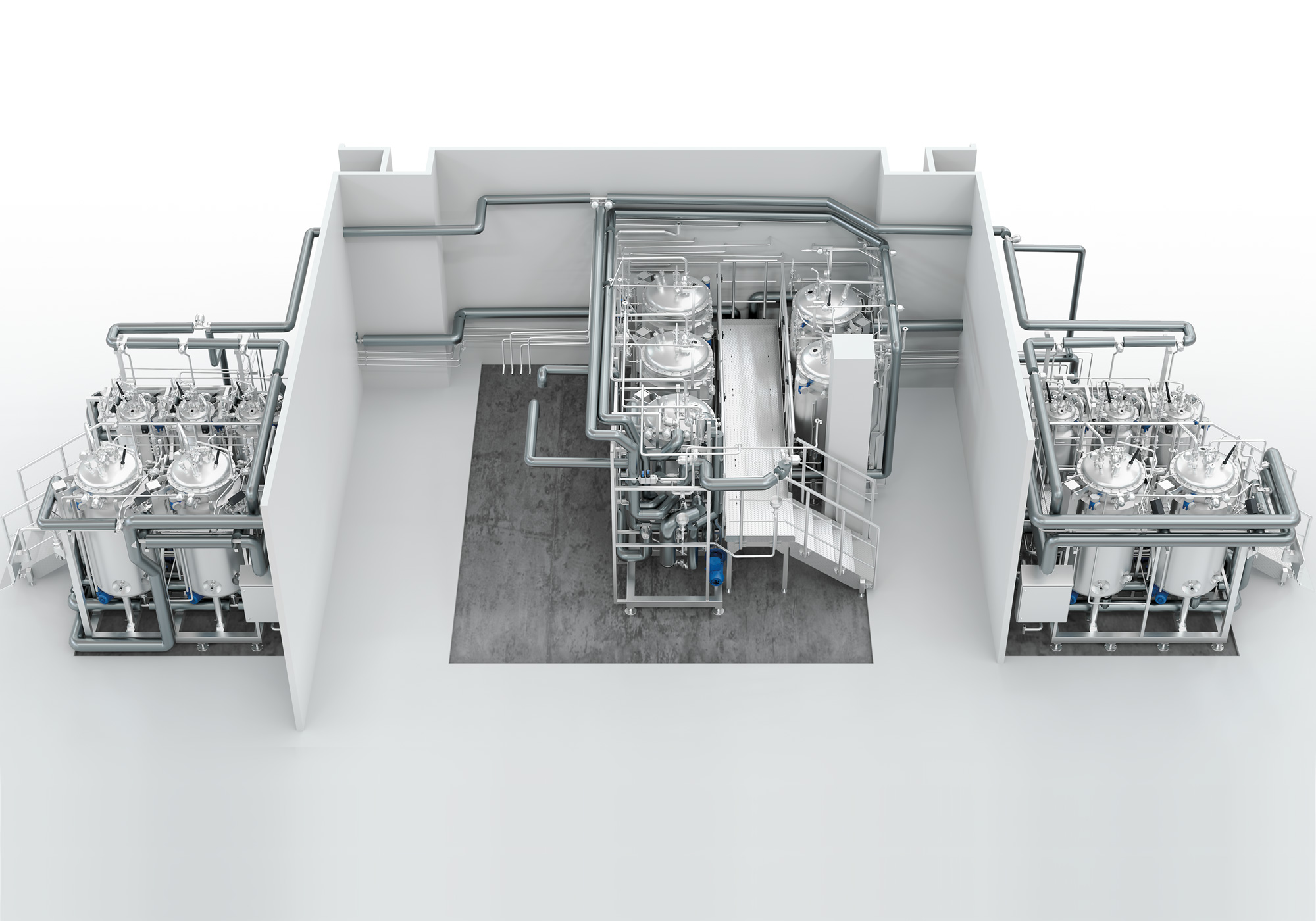

Conception, design and construction of a pharmaceutical plant incl. P&ID, 3D design of the entire plant incl. piping. The plant consists of 15 vessels and a CIP unit. Built on 7 skids in 3 rooms including the piping of the plant on site.
Particular emphasis was placed on the cleanability of the system and the product piping. The system was designed in accordance with the Pressure Equipment Directive (PED), Machinery Directive (MD) and ATEX Directive (ATEX). Including start-up and qualification (DQ, IQ, OQ) of the system.
CIP / SIP UNITS
Design, construction and manufacture of CIP units for cleaning (CIP) and sterilizing (SIP) vessels or equipment components. Stationary or mobile CIP units in the clean room or technical area.
Prefabrication on a skid. Installation, start-up and training at the customer's premises. Qualification (DQ, IQ, OQ) of the system is optional.

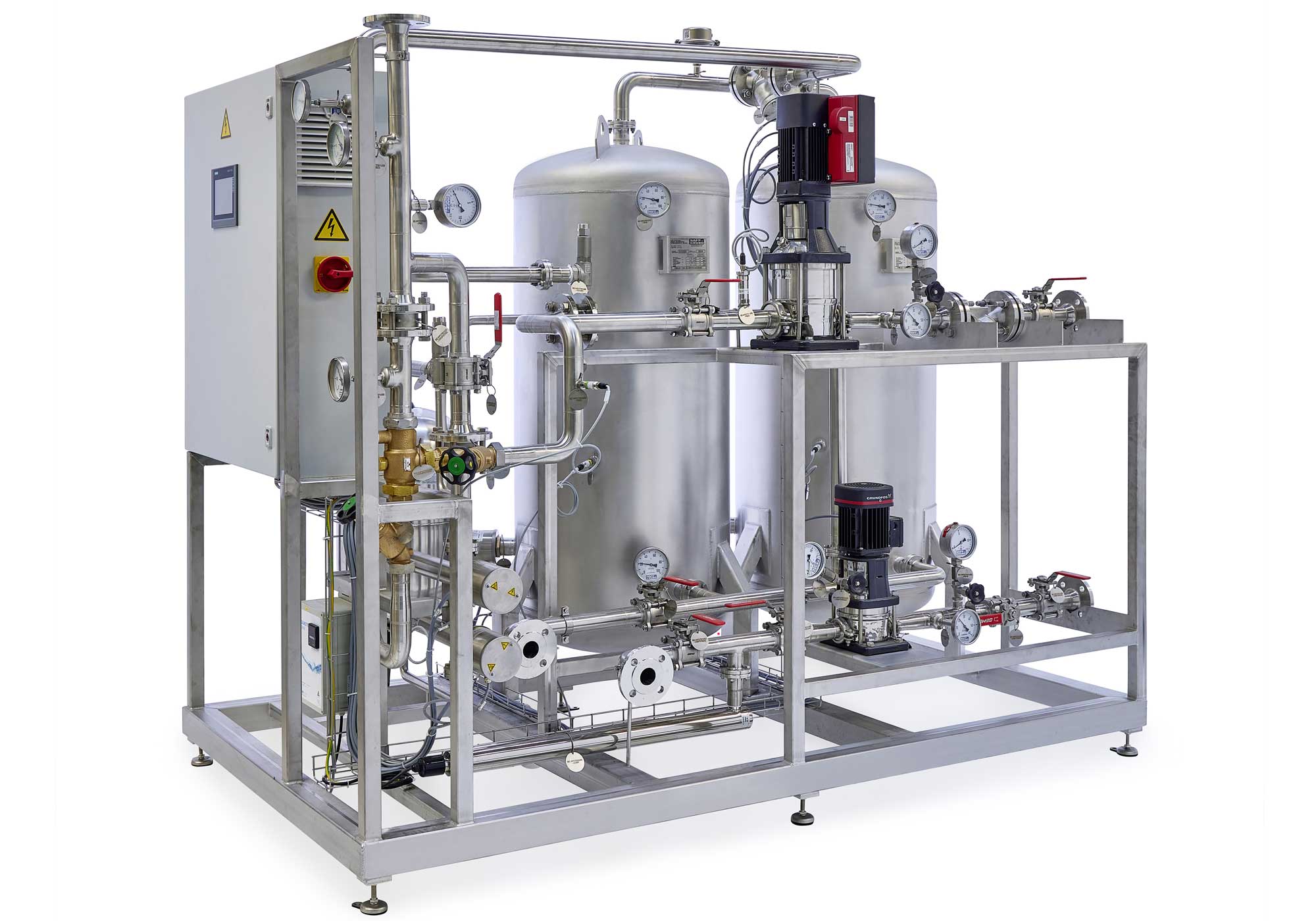

TEMPERATURE CONTROL SYSTEM
Design and construction of 2 systems for water temperature control. Consisting of 2 tanks each with heating, heat exchanger, mixing valve, pumps and a control system with touch panel. Incl. creation of a P&ID, design, construction, installation and start-up of the systems at the customer's premises.

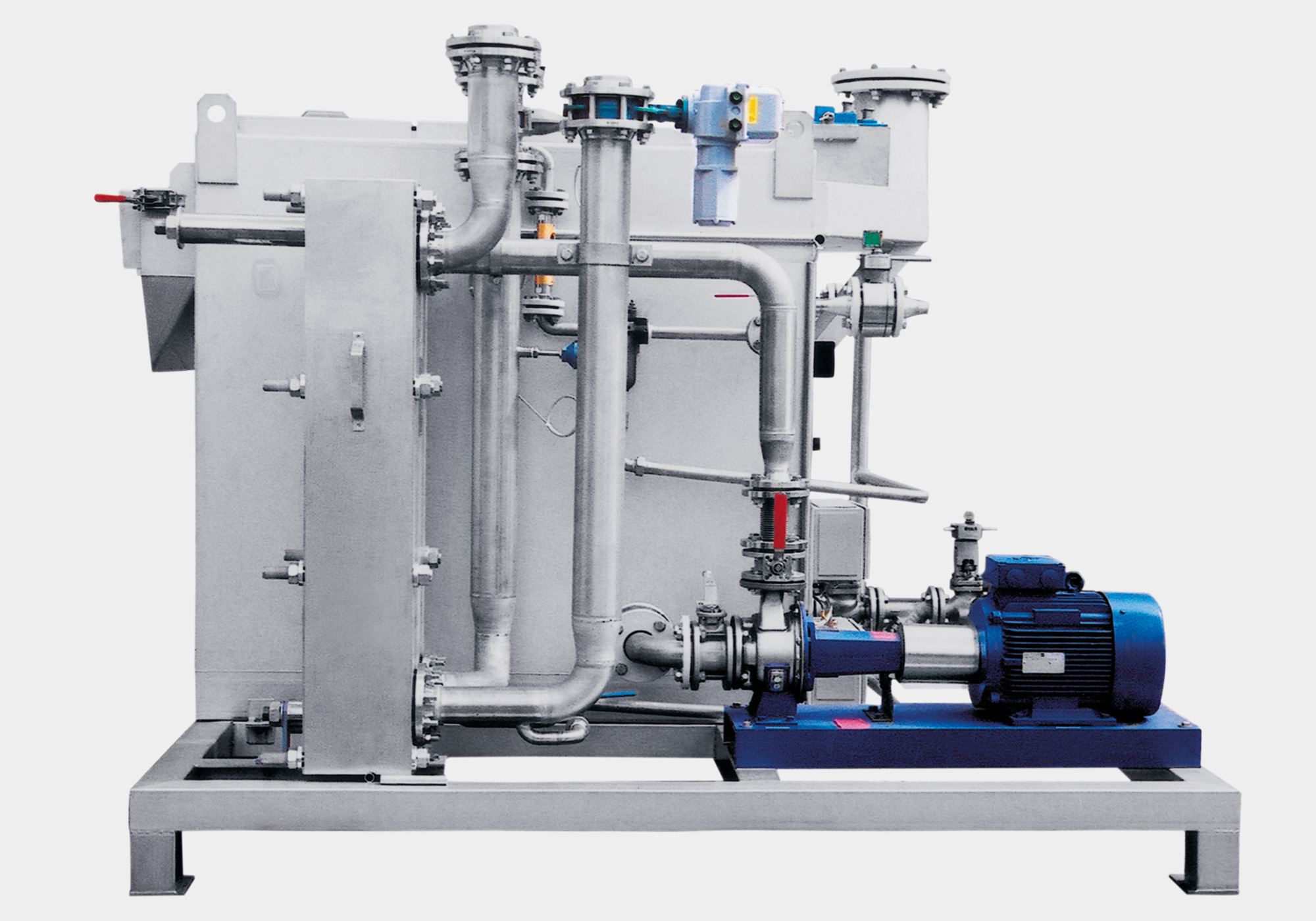

FILTER UNITS AS A COMPACT UNIT
Conception, design and construction of a filter unit consisting of a pelletizing water tank with screen carriage, pump, plate heat exchanger and piping. Incl. 3D design and wiring of the system.
